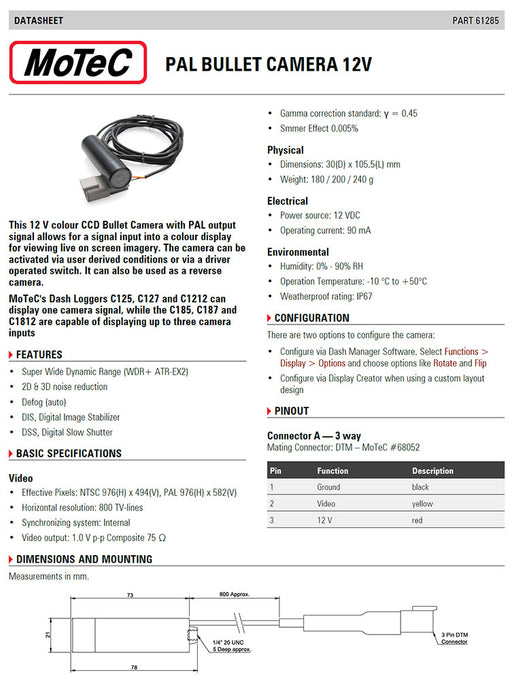

PAL BULLET CAMERA (12V)

This 12 V color CCD Bullet Camera with PAL output signal allows for a signal input into a color display for viewing live on-screen imagery. The camera can be activated via user derived conditions or via a driver operated switch. It can also be used as a reverse camera.

MoTeC's Dash Loggers C125, C127 and C1212 can display one camera signal, while the C185, C187 and C1812 are capable of displaying up to three camera inputs.

Features:

• Super Wide Dynamic Range (WDR+ ATR-EX2)
• 2D & 3D noise reduction
• Defog (auto)
• DIS, Digital Image Stabilizer
• DSS, Digital Slow Shutter

Video:

• Effective Pixels: NTSC 976(H) x 494(V), PAL 976(H) x 582(V)
• Horizontal resolution: 800 TV-lines
• Synchronizing system: Internal
• Video output: 1.0 V p-p Composite 75 O
