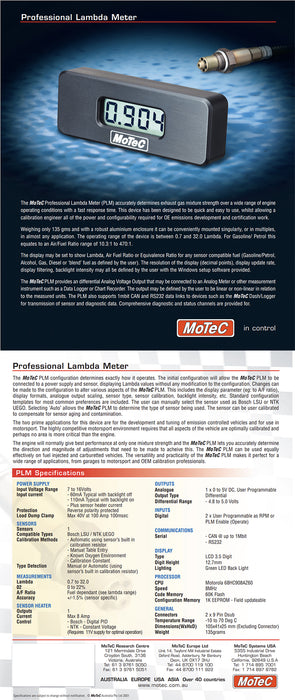

PLM - Pro Lambda Meter Kit, LSU 4.9, 6m

Pro Lambda Meter Kit, LSU 4.2, 6 meters

General:

• CAN communications up to 1 Mbit
• RS232 communication for configuration
• Analogue output providing differential voltage
• Maximum 8 ampere sensor heater
• Multiple PLMs (up to 16) can be connected together
• Available as part of complete kits
• Usable as an alternative to wideband Lambda upgrades in MoTeC ECUs and Dash Loggers
• 2 x 9 pin Dsub connector
• Robust aluminum enclosure

Measurement/Configuration

• Comprehensive diagnostic and status channels
• Standard configuration tables
• Configurable to compensate for sensor aging and contamination
• Accuracy +/– 1.5%

Compatible

• Gasoline/petrol
• Alcohol
• LPG
• Diesel
• User defined 'blend' fuel

Calibration methods:

• Automatic, using the sensor's built-in calibration resistor
• Manual table entry
• Known oxygen environment
• Calibration constant

Operating range:

• Lambda 0.7 to 32
• AFR 10.3 to 470 for gasoline/petrol
• Oxygen 0 to 22%

Display

• Display configurable to show Lambda, Air Fuel Ratio or equivalence ratio
• Flexible display setup configurable for resolution (decimal points), display update rate, display filtering and backlight intensity
• Easy to read 3.5 digit LCD with 12.7 mm (½") digit height
